MG - 6000 desktopCheap and High Quality Ticket Cutter Ticket Eater Machine
MG - 6000 desktopCheap and High Quality Ticket Cutter Ticket Eater Machine


PC Enter Amount


Product ID: 2019314113931849

Unit Price: $700.00USD/PCS

Mini Order: PCS

Delivery Time:


Product Description

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater



Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater

The Ticket eater is an automatic machine for counting and destroying redemption tickets .It has a LED display screen to show the number of tickets counted by the machine . user friendly.

product detail

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater

Product Size: 310 x 270 x 160 mm

Power: 120 VAC 60Hz / 230 VAC 50Hz UL Approval

Speed is Greater than 13 Tickets per Second 4 Digits Hard Mount Display

Ticket Size50.6 x 29.2 mm

Resetable Electronic Counter

Non-resetable inventory control counter (internal)

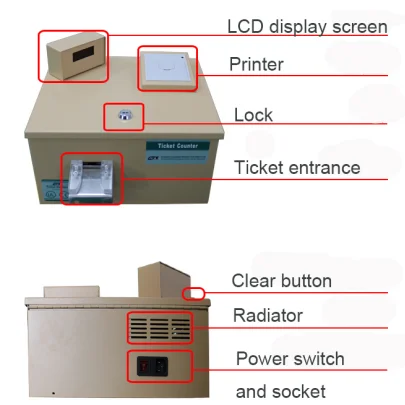

Introduce(Introduction)of machine

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater

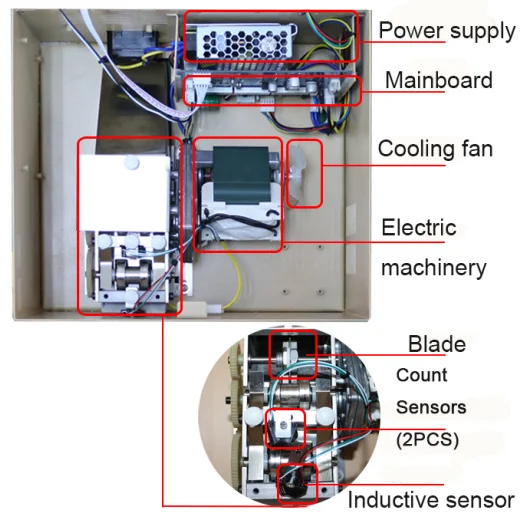

Inside view

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater

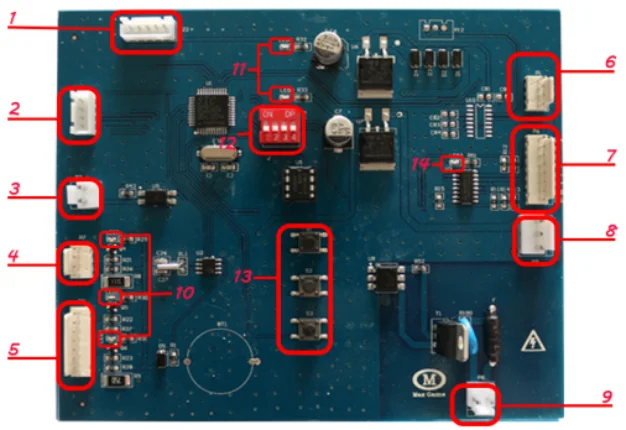

Main board diagrams

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater

1.P22--LCD screen connector  3.P21--Button(to clear the data)

4.P7--Inductive sensor

5.P3--Count sensor,bulb,power supply(DC:12V)

6.P1--The power supply for printer and Signal line(DC:12V)

7.P6--System Signal Interface

TD System communication board controls motor drive signal,valid for low logical level

MD Count machine motor drive signal, Valid for low logical level

SR- decrease pulse signal

SR+Count and increase tickets pulse signal

(TD ,MD ,SR+ ,SR- are for connecting managing system)

GND:Ground line

12V Power supply(DC:12V)

8. P9--Mainboard power supply(DC:12V)

9. P8-- Electric machinery power supply(AC:220V)

10. Sensor indicator light

LED3:Inductive sensor indicator light

LED5/LED4:Count sensor indicator light

11. LED7/LED8 main board indicator light

12. DIP switch

13. Setting up keys

LED2 Electric machinery indicator light

Use of Instruction

 Take the ticket into ticket entrance directly,the ticket counter will start working

Press the button to confirm and print receipt

Setting up instruction

PressS1-- +, S2-- -,S3-- back

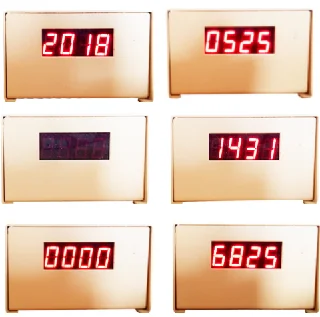

1.Setting up for date and no. of machine.

Turn of the power switch firstly,then pressS1,then turn on the power switch.The screen will show the date of year

After setting up,pressS3 to next step.The screen will show the date as below:25th May

After setting up,pressS3 to next step,the screen will show the exact time.(tips:use 24-hour clock)

 Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater





After above setting up,pressS3,the screen will be black,pressS3 again to next step:setting up for the machine code

Press “S3”,the screen will flash  20S,then  the machine will start to work.

4.2 Data details

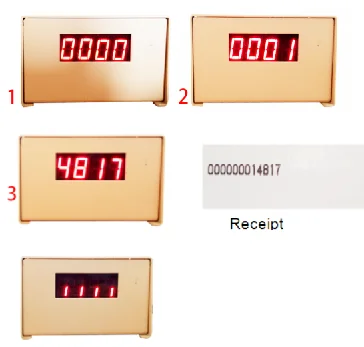

Press”S3”,the screen will show 0000,then press”S3”,screen will show the total ticket quantity.

Press“S3”,print receipt,total ticket quantity is :6825.



If the quantity of total ticket is over 10.000, like 14.817ticket,the screen will show as below:

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater

replenish print receipt ,press”S2”directly

Clear data to zero

1 Clear the amount of the receipt,press”S1”first,the screen will be static,then press”S2”.

2 Clear the amount of the ticket,press”S1” first,the screen will be static,then press”S3”

Warmly reminder:can not clean the currently ticket quantity.

Error and solutions

1.  Show Err1,LED4 is bright,one of the count sensor error.

Show Err2,LED5 is bright,another one count sensor error

Show Err3,LED4 and LED5 are bright,2 count sensor error

Solution:1.Adjust the count sensor position till the error tips removed.

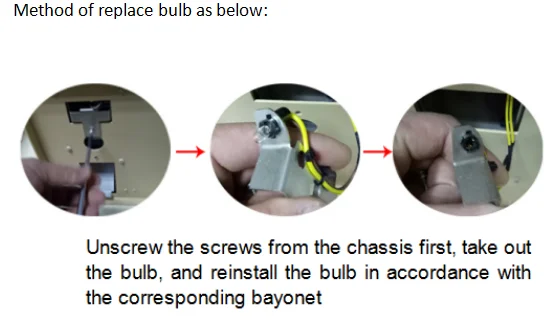

2. Check whether the bulb work or not,if not,please replace the bulb firstly,then adjust count sensor position.

Ticket Eater / Ticket Cutter Game Machines Lottery ticket eater
