MG-6000Luxury ticket house
MG-6000Luxury ticket house


PC Enter Amount


Product ID: 201939154208656

Unit Price: $2,550.00USD/PCS

Mini Order: PCS

Delivery Time:


Product Description

high speed game center system ticket house  / high speed ticket station game machine

high speed game center system ticket house  / high speed ticket station game machine

Description

The Ticket House is an automatic machine for counting and cutting redemption tickets .It has a LED display screen to show the number of tickets counted by the machine

Warmly notice :Please clear up the dust in the machine machine ,especially on sensors

high speed game center system ticket house  / high speed ticket station game machine

1. LED light, ticket house

2. LED display and ticket gate

3. Print confirmation button

4. Ticket gate

5. LED light box (7 colors) and light bar

6. The chassis has a universal wheel for easy movement. After fixing the position, you can rotate the surrounding screws to fix

7. Machine power main switch (open the cover on the chassis)

8. Built-in cooling fan (top of the chassis)



high speed game center system ticket house  / high speed ticket station game machine

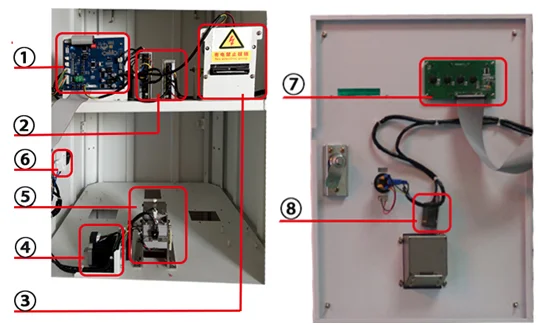

Internal structure

1. Control the motherboard

2. Power box + starter (behind the motherboard) + light box power supply

3. Thermal printer

4. Motor

5. Cutter group and light eye

6. Safe start switch

7. Display panel

8. Scanning head

INSTALLATION

The machine is to be used in indoor places and should be placed at a flat surface and far away from sources of excessive heat and /or humidity, ensuring that the connection to the “earth “is efficient. Any possible maintenance, except the changing of the sack, should be carried out by qualified and trained engineers and adhere to normal and safe procedures

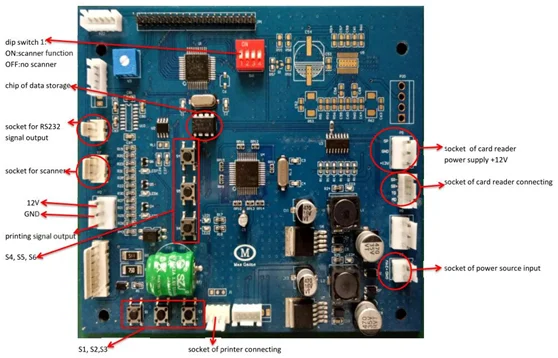

DIAGRAM OF MAINBOARD

high speed game center system ticket house  / high speed ticket station game machine

S1,S2,S3: function setting (details in next page)

S4,S5,S6: record bar-code tickets when ticket station uses scanning function( maximum 3 different kinds of bar-code ticket.)

Dip switch 1: for ticket house with scanner, when dip switch1 is ON, the ticket house can accept bar-code tickets only; when dip switch is OFF, ticket house can accept both bar-code tickets & no bar-code tickets

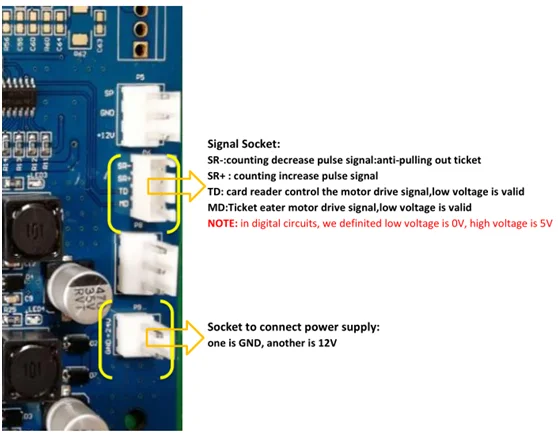

CARD READER ENABLE

If you want the machine to be connected with your managing system ,Please connect it as below: (our ticket eater already connected with Cointech, Embed, Sacoa, Intercard,Integrado,etc

 high speed game center system ticket house  / high speed ticket station game machine

FUNCTION SETTING

Open the door , then turn on the power switch on the door, at the same time, pressing S1 button for 5 seconds to enter the state of function setting. S1-- +, S2-- -, S3-- Shift

1.Time and date setting:  S1-- “+”, S2-- “-”, S3-- “Shift

high speed game center system ticket house  / high speed ticket station game machine

high speed game center system ticket house  / high speed ticket station game machine

product detail

high speed game center system ticket house  / high speed ticket station game machine

MG-6000(A,B,C,D)   Luxury Ticket House

MG-5000(A,B,C,D)  Economy Ticket House

Height: 189cm

Height: 135cm

Width:  70cm

Width:  50cm

Depth:  70cm

Depth:  50cm

Weight: 90KGS (add 10KGS per side)

Weight: 55KGS (add 10KGS per side)

Current

110V~120V 6A ; 220V~240V 3A

Power

650W

Counting speed

730-750pcs per minute for 2” ticket

1180-1200pcs per minute for 1.25” ticket

1450-1500pcs per minute for 1” ticket



Ticket capacity

180,000-200,000pcs for luxury ticket house

 60,000-80,000pcs for economy ticket house
