Hot Selling Ticket house for Redemption Game Machine

Hot Selling Ticket house for Redemption Game Machine

Ticket House is an automatic machine for counting and cutting redemption tickets .It has a LED display screen to show the number of tickets counted by the machine

 notice : Please clean up dust inside of machine ,especially for sensors.

(if machine cut 1 carton of tickets per day, you need clear up dust once a week at least)

product detail


Product Model

MG-5000(A,B,C,D) ; MG-S-5000(A,B,C,D)

Voltage

110V~240V

Current Frequency

50Hz

Power

130W per side

Counting speed

700-750pcs per minute for 2” ticket

1150-1200pcs per minute for 1.25” ticket

1450-1500pcs per minute for 1” ticket

Ticket capacity

60,000-80,000pcs for 2 ticket

100,000-120,000pcs for 1.25 ticket

120,000-160,000pcs for 1 ticket

Size

50 x 50 x 140CM

Net Weight

55KGS for 1 side (add 10KGS per side)



EXTERNAL STRUCTURE

Hot Selling Ticket house for Redemption Game Machine

INTERNAL STRUCTURE

Hot Selling Ticket house for Redemption Game Machine

MAINBOARD STRUCTURE

Hot Selling Ticket house for Redemption Game Machine

1. Socket of small cable

-when you disconnect thermal printer,please install a small cable

2. Socket to connect LCD display

3. No use

4. Socket to connect scanner

5. Socket to connect confirm button

6. Socket to connect sensors - inducing sensor,counting sensor,bulb

7. Buttons of function setting - S1,S2,S3

8. Socket of thermal printer

NOTE: keep power is off when disconnect thermal printer , or it will be burnt out.

10. Socket of power supply for main board

11. Socket to connect manage system

SR- : counting decrease pulse signal

SR+ : counting increase pulse signal

TD : system IO board control motor drive signal, low level is valid

MD : ticket house motor drive signal, low level is valid



12.Socket of power supply for system IO board- 12V

13. Dip Switch for choosing scanning function or not.

14. Data storage chip

If data storage is full, change a new chip directly.

15.Buttons of scanning function setting-S4,S5,S6

- it is valid for ticket house with scanner only

16. LED signal indicator -LED5,LED6,LED7

FUNCTION SETTING

Open the door, then turn on the door power switch, meanwhile, pressing S1 button for 5 seconds to enter the state of function setting. S1-- +, S2-- -, S3-- Shift

Hot Selling Ticket house for Redemption Game Machine

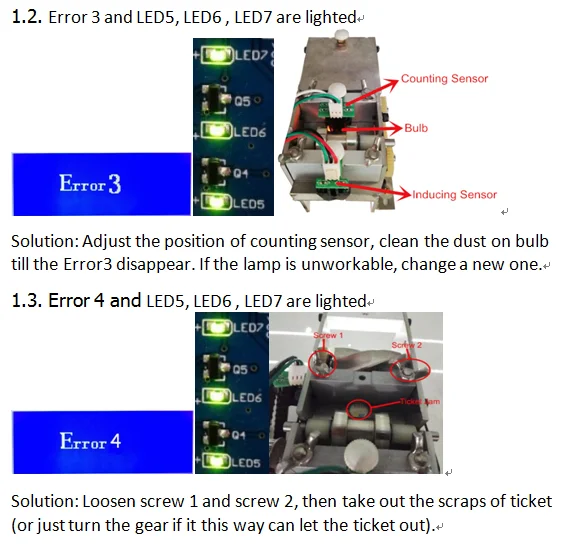

TROUBLE SHOOTING

Hot Selling Ticket house for Redemption Game Machine

Hot Selling Ticket house for Redemption Game Machine

NOTE:

when LED screen display normally, only LED5 is lighted. LED6 & LED7 will be lighted normally only when machine is counting and cutting tickets.

(LED 5: inducing sensor indicator ; LED 6 & LED 7: counting sensor indicator )

2.Power on the machine, motor is keeping rotating even no ticket in

Solution: check if there is any sundries around or under the inducing sensor

3.Any fake-tickets can be cut or counted--for ticket house with scanner

Solution: check if scanner is broken, or re-record bar code tickets

4.Date and time on receipt is inaccurate

Solution: reset date and time in the function setting, if still not OK, please change a new battery on main board of machine.

5.Motor doesn’t work when feeding tickets

Solution: Firstly, check if there is ticket jam in ticket counting channel; then observe LED2 indicator on main board if it is lighted(if not lighted, check inducing sensor) ; then check FUSE1,T1,MOC3022 on main board if they are broken; Is there 220V power input?

6.When LCD screen display Error 3 ,and thermal printer can’t print receipt, it turns out that main board has no 12V input

Solution: please check cables and plugs between power supply and main board.

7.Machine doesn’t work when powered on

Solution: open the iron cover on the bottom of machine, then check if the main power switch is open

8.Thermal Printer fault:

No paper

Solution: check if there is thermal paper ? if there is paper jam? If 12v input is well connected.

Receipt is blank after changed a roll of new thermal paper
