MG-6500Luxury coin machine doll machine coin changer automatic coin token changer
MG-6500Luxury coin machine doll machine coin changer automatic coin token changer


PC Enter Amount


Product ID: 2019312144806155

Unit Price: $985.00USD/PCS

Mini Order: PCS

Delivery Time:


Product Description

Coin Change Machine Currency Exchange Machine Automic Money Changer



Luxury coin machine doll machine coin changer automatic coin token changer

Coin Change Machine Currency Exchange Machine Automic Money ChangerAdvantage of Coin changer machine:

1.  Coin changer,automatic coin token changer

2.  Advanced bill acceptor with staker or without stacker matched

3.  Coin or token capacity more than 20000pcs

4.  Import working motor,long-time use

5.  Double LED display function: sum in total and coin out total

6.  Attractive cabinet&stable management system

7.  LCD screen with speaker to show musice, video and word

8.  Special audit memory function and encryption (password) function,SMS function

9.  Confirmation button: sum in total and coin out total



Coin Change Machine Currency Exchange Machine Automic Money Changer





product detail

Coin Change Machine Currency Exchange Machine Automic Money Changer

Specification
Voltage 110V-240V
Starting Current 2A
Quiescent Current 50mA
Dynamic Current 115mA
Dimension of coin and token

Diameter: 22.5mm-26.5mm (small coin) / 27mm-30mm (big cion)



Thickness: 1.7mm-2.1mm ( More and Less)

Bill Variety of styles of option, multi-nation banknote and acceptable



Introduction to internal structure:

1. Setting panel

2. Motherboard

3. LED screen signal source and U disk interface

4. Money hopper

5. Banknote machine and coin acceptor

6. Dimensionalizer

7. Power switch

8. Cash box

 Coin Change Machine Currency Exchange Machine Automic Money Changer

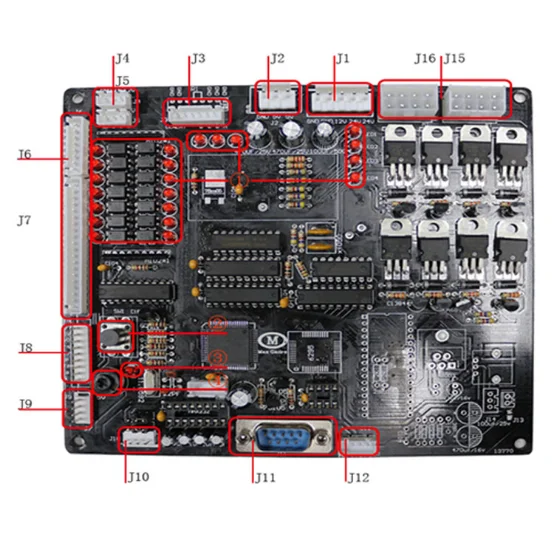

J1. Motherboard power supply

J2. Alternate

J3. 8-word display

J4/J5. Coin

J6. Button

J7. Light code table

J8. LCD screen

J9. Banknote machine 1

J10. Banknote machine 2

J11. SMS cat signal source

J12. SMS cat power supply

J15/J16. Motor

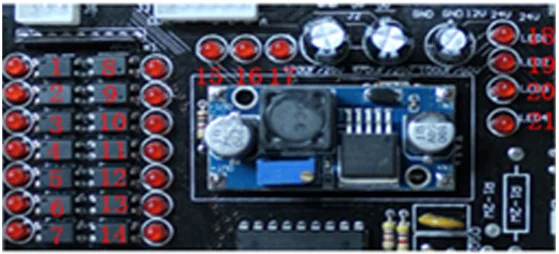

Motherboard display

2. Set button

3. Motherboard running indicator

4. Screen contrast adjustment

Coin Change Machine Currency Exchange Machine Automic Money Changer

1. "down" button indicator

2. "Up" button indicator

3. "OK" button indicator

8. "Left" button indicator

9. "Right" button indicator

11/12. Coin indicator

13/14. Motor light eye connection indicator

15. 12v power indicator

16/17. 24v power indicator

18/20. Motor post self tes

19/21. Motor running

Coin Change Machine Currency Exchange Machine Automic Money Changer

Product setup instructions:

Motherboard page control

After power-on, the machine self-tests. Long press the "OK" button to enter the main menu

A. Money adjustment: Press “OK” to enter the adjustment. Press the "Up" and "Down" keys to adjust the number of coins in the corresponding coin. Return after adjustment.

Note: The currency is related to personal revenue. Please confirm the settings carefully before exiting confirmation.

B. Account Query: The statistics of the last time the account was cleared to the current account and the current time of the account. Press the "Up" and "Down" keys to query

C. Clearing the account: Clear the data of this credit and this time. Press the "Up" and "Down" keys to select the setting

Recommendation: Clear the account after each reconciliation to facilitate understanding of business conditions

2.  Set "Yes" and "No" depending on whether the device is installed with the confirmation button

D. Selection of the coin returner: According to the connection of the motherboard, press the “Up” and “Down” keys to select the setting. Note: If there is no accident, please do not change the factory settings at will, in order to cause the machine to malfunction.

E. Choice of the banknote: according to the connection of the motherboard

F. Deposit setting: press “Left” and “Right” keys to set the abdication, press “Up” and “Down” to set the value. If not used, you can set it to “00000 Close”

G. Clearance setting: Press the “Up” and “Down” keys to select the setting. If you select "Yes", all coins in the machine will be withdrawn

H. SMS settings

h1/h2/h3: Press the “OK” button to enter the setting, the “Left” and “Right” buttons for the abd setting, and the “Up” and “Down” for the digital setting.

h4/h5: Press “OK” to enter the setting, press “Up” and “Down” to select “On” or “Off”

h6: Time setting: The time interval for sending short messages. If set to 2 hours, the machine will send a text message to report the operation for two hours, and the maximum value is 24 hours.

h7: After the setting is completed, you can send a text message to verify

After setting or after booting, the setting screen is as shown in Figure 1. You can query for permanent items by pressing the "Up" and "Down" keys at the same time.

Permanent itemsrefers to the accounting data accumulated during the production, inspection and use of the machine. The accurate revenue revenue should be recorded in the “Account Query”. This data will never be cleared.

Accessories description

1. Four coins basket

2. Two corresponding keys to the door lock

3. Power fixed iron piece

4. LCD screen remote control

5.  U disk (on the machine)

Precautions:

1 Please put loose coins into the refunded currency. Do not put the whole currency directly into the coin, otherwise the coin-returning machine will not be able to withdraw coins.

2. In the process of placing loose coins, be careful not to put small stones, small paper scraps and other foreign objects together, otherwise it will easily cause the coin to be returned.

3The machine is shipped after strict inspection. Do not disassemble the machine at the guidance of non-professionals to avoid unnecessary machine failure.

4.  Please clean the light eye of the banknote regularly to maintain the sensitivity of the light eye.

5 Have any questions about the operation of the machine, please call the after-sales hotline
