Coin changer machine
high quality coin changer vending Premium currency money exchange machine
high quality coin changer vending Premium currency money exchange machine


PC Enter Amount


Product ID: 201939145522208

Unit Price: $1,150.00USD/PCS

Mini Order: PCS

Delivery Time:


Product Description

coin vending Premium currency money exchange machine

high quality coin changer vending Premium currency money exchange machinecoin vending Premium currency money exchange machine

coin vending Premium currency money exchange machine

1.LED display (playable format: txt / mp4 / jpg)

2. Digital tube (displays the amount invested and the number of coins)

3. Mobile payment QR code

4. Take the coin slot

5. Banknote machine and coin acceptor

6. Door lock

7. Speaker

contact information


product detail

coin vending Premium currency money exchange machine

Specification

Volatage 110V-240V
Starting Current 2A
Quiescent Current  50mA
Dynamic Current 115mA
Dimension of coin and token

Diameter:

22.5mm-26.5mm (small coin)

27mm-30mm (big cion)

Thickness: 1.7mm-2.1mm ( more or less is available)

Bill/ Banknote  Variety of styles of option, multi-nation banknote and acceptable
Coin capacity 15,000-20,000pcs

coin vending Premium currency money exchange machine

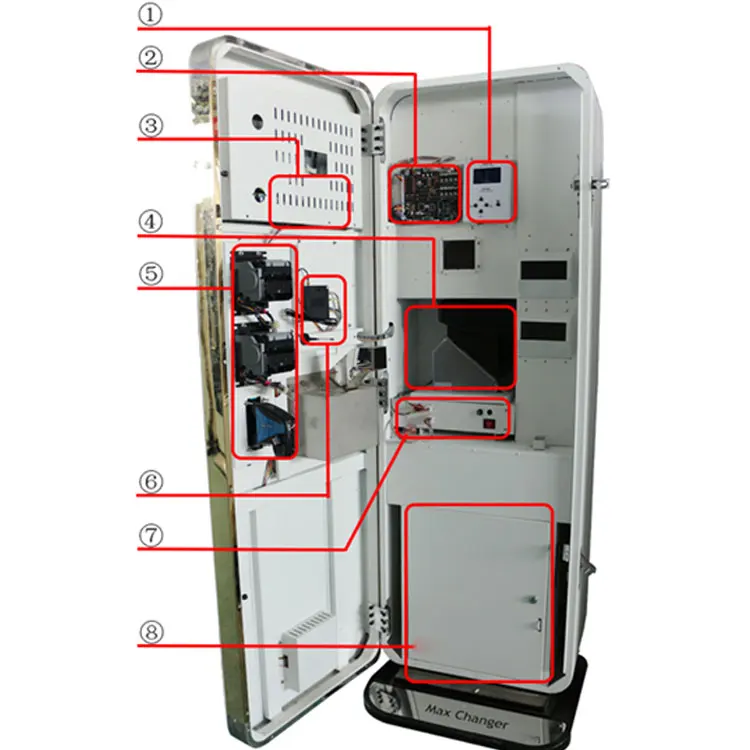

Introduction to internal structure:

1. Setting panel

2. Motherboard

3. LED screen signal source and U disk interface

4. Money hopper

5. Banknote machine and coin acceptor

6. Dimensionalizer

7. Power switch

8. Cash box

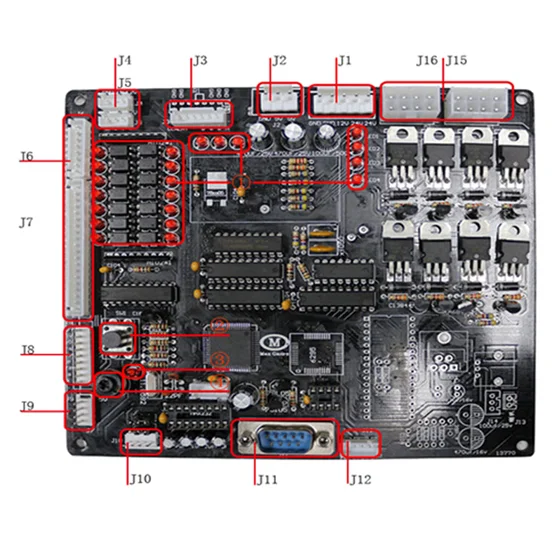

coin vending Premium currency money exchange machine

J1. Motherboard power supply

J2. Alternate

J3. 8-word display

J4/J5. Coin

J6. Button

J7. Light code table

J8. LCD screen

J9. Banknote machine 1

J10. Banknote machine 2

J11. SMS cat signal source

J12. SMS cat power supply

J15/J16. Motor

Motherboard display

2. Set button

3. Motherboard running indicator

4. Screen contrast adjustment

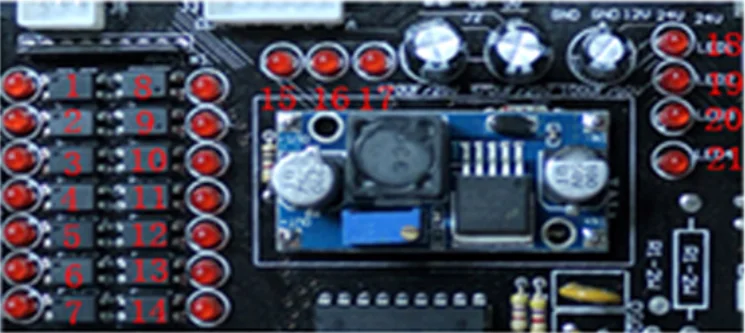

coin vending Premium currency money exchange machine

1. "down" button indicator

2. "Up" button indicator

3. "OK" button indicator

8. "Left" button indicator

9. "Right" button indicator

11/12. Coin indicator

13/14. Motor light eye connection indicator

15. 12v power indicator

16/17. 24v power indicator

18/20. Motor post self tes

19/21. Motor running indicator

Product setup instructions:

Motherboard page control

After power-on, the machine self-tests. Long press the "OK"button to enter the main menu

coin vending Premium currency money exchange machine

A. Money adjustment: Press “OK” to enter the adjustment. Press the "Up"and "Down" keys to adjust the number of coins in the corresponding coin. Return after adjustment.

Note: The currency is related to personal revenue. Please confirm the settings carefully before exiting confirmation.

B. Account Query: The statistics of the last time the account was cleared to the current account and the current time of the account. Press the "Up" and "Down" keys to query

C. Clearing the account:Clear the data of this credit and this time. Press the "Up" and "Down"keys to select the setting

Recommendation: Clear the account after each reconciliation to facilitate understanding of business conditions

2.  Set "Yes" and "No" depending on whether the device is installed with the confirmation button



D. Selection of the coin returner: According to the connection of the motherboard, press the “Up” and “Down” keys to select the setting. Note: If there is no accident, please do not change the factory settings at will, in order to cause the machine to malfunction.



E. Choice of the banknote: according to the connection of the motherboard

F. Deposit setting: press “Left” and “Right” keys to set the abdication, press “Up” and “Down” to set the value. If not used, you can set it to “00000 Close”

G. Clearance setting: Press the “Up” and “Down” keys to select the setting. If you select "Yes", all coins in the machine will be withdrawn.

H. SMS settings

h1/h2/h3: Press the “OK” button to enter the setting, the “Left” and “Right” buttons for the abd setting, and the “Up” and “Down” for the digital setting.

h4/h5: Press “OK” to enter the setting, press “Up” and “Down” to select “On” or “Off”

h6: Time setting: The time interval for sending short messages. If set to 2 hours, the machine will send a text message to report the operation for two hours, and the maximum value is 24 hours.

h7: After the setting is completed, you can send a text message to verify



After setting or after booting, the setting screen is as shown in Figure 1. You can query for permanent items by pressing the "Up"and "Down" keys at the same time.

Permanent items: refers to the accounting data accumulated during the production, inspection and use of the machine. The accurate revenue revenue should be recorded in the “Account Query”. This data will never be cleared.
